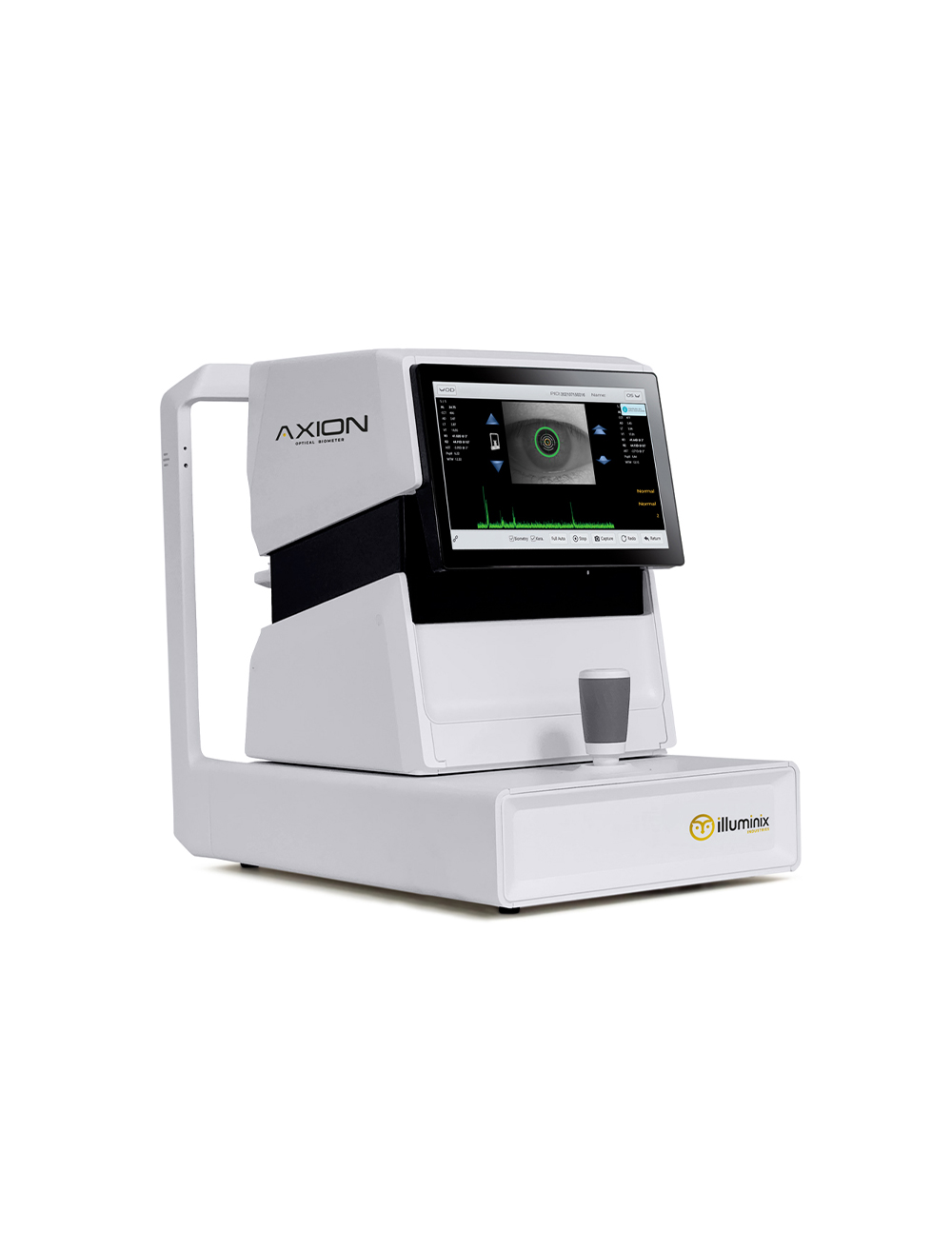

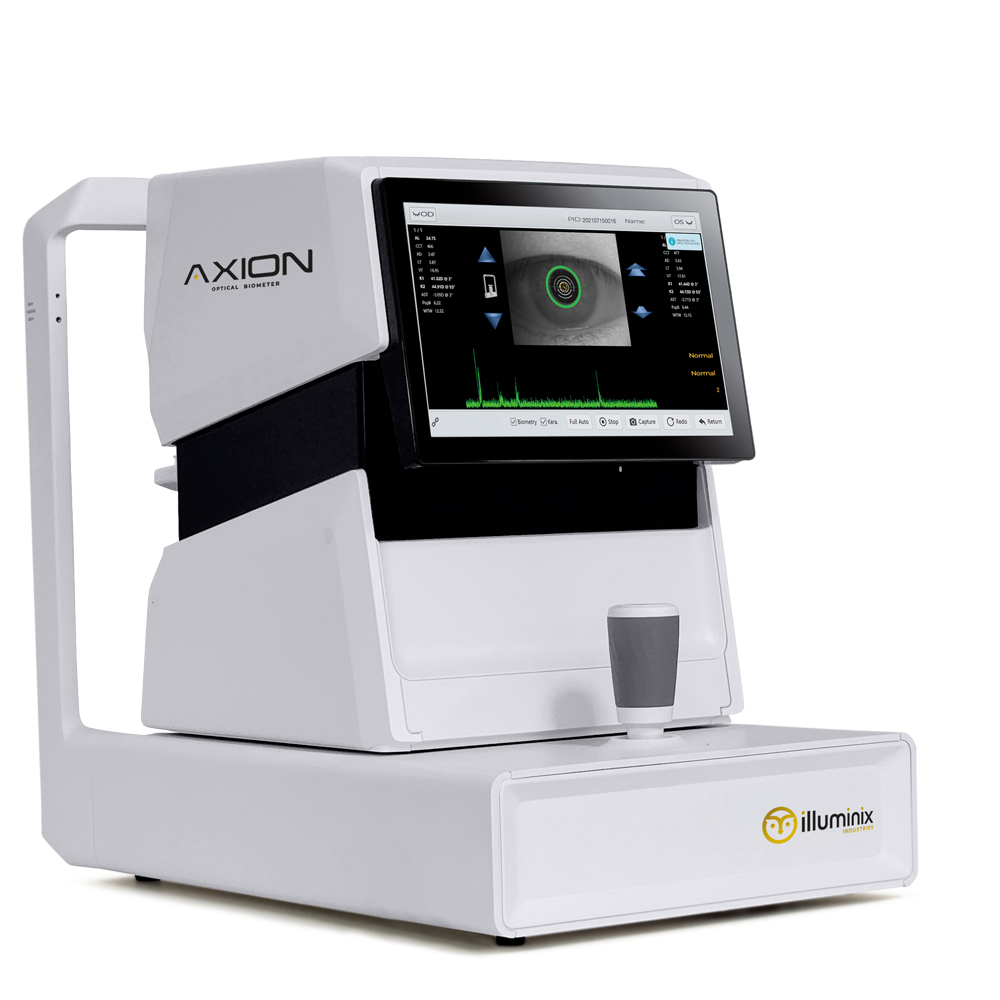

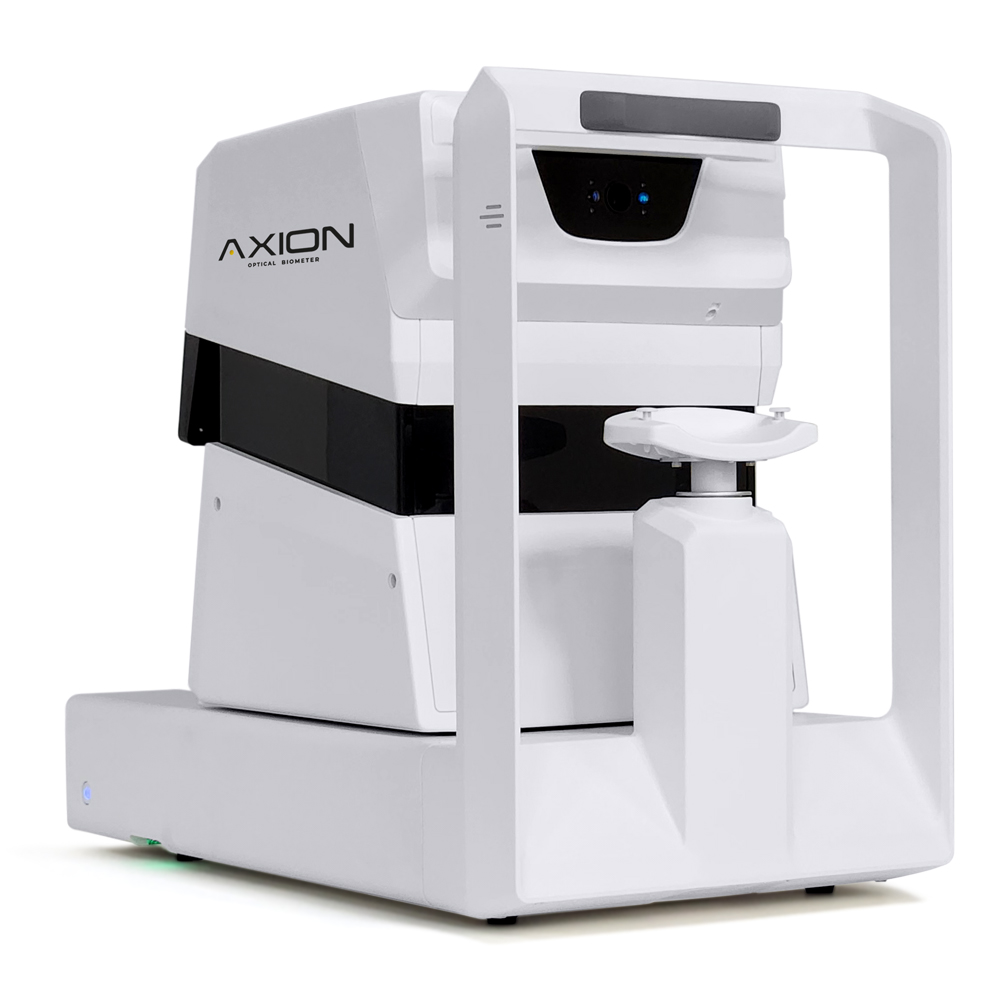

AXION OPTICAL BIOMETER

Technical Specification:
• Technology: Low-Coherence Reflectometry
• Laser wavelenght: 820nm
• Laser class: 1
• Interface: USB
• Voltage/Frequancy: 90~230 VAC / 50-60Hz

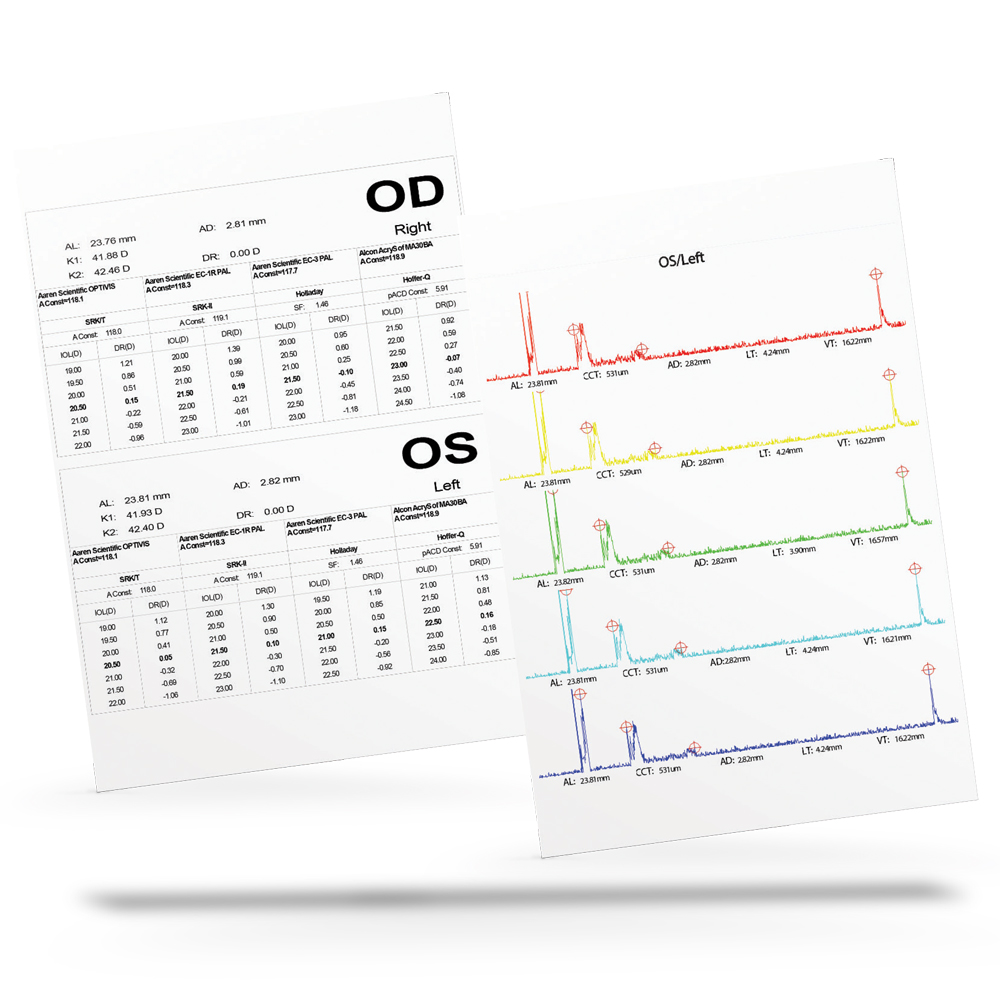

Measurements:
• Central Corneal Thickness (CCT)
• Anterior Chamber Depth (ACD)
• Lens thickness (LT)
• Axial lenght (AL)
• Keratometry 32points (K1/K2)
• Pupilar diameter (PD)
• White to white (WTW)

Measurement Range:
• AL: 12-34mm
• CCT: 300-800µm
• Keratometry: 4.8-11.1mm
• Axis: 0-180 degree
• ACD: 1.5-6.0mm
• LT: 0.5-7.0mm
• WTW: 6.5-16.6mm
• PD: 1.9-13.5mm

Resolution:
• AL: 0.01mm
• CCT: 1µm
• Keratometry: 0.01mm
• Axis: 1 degree
• ACD: 0.01mm
• LT: 0.01mm
• WTW: 0.01mm
• PD: 0.01mm

IOL Calculation Formulas:
• SRK-T
• SRK-II
• Holladay
• Binkhorst-II
• Hoffer-Q
• Haigis
• Shammas-PL

*NOT FOR SALE IN USA
