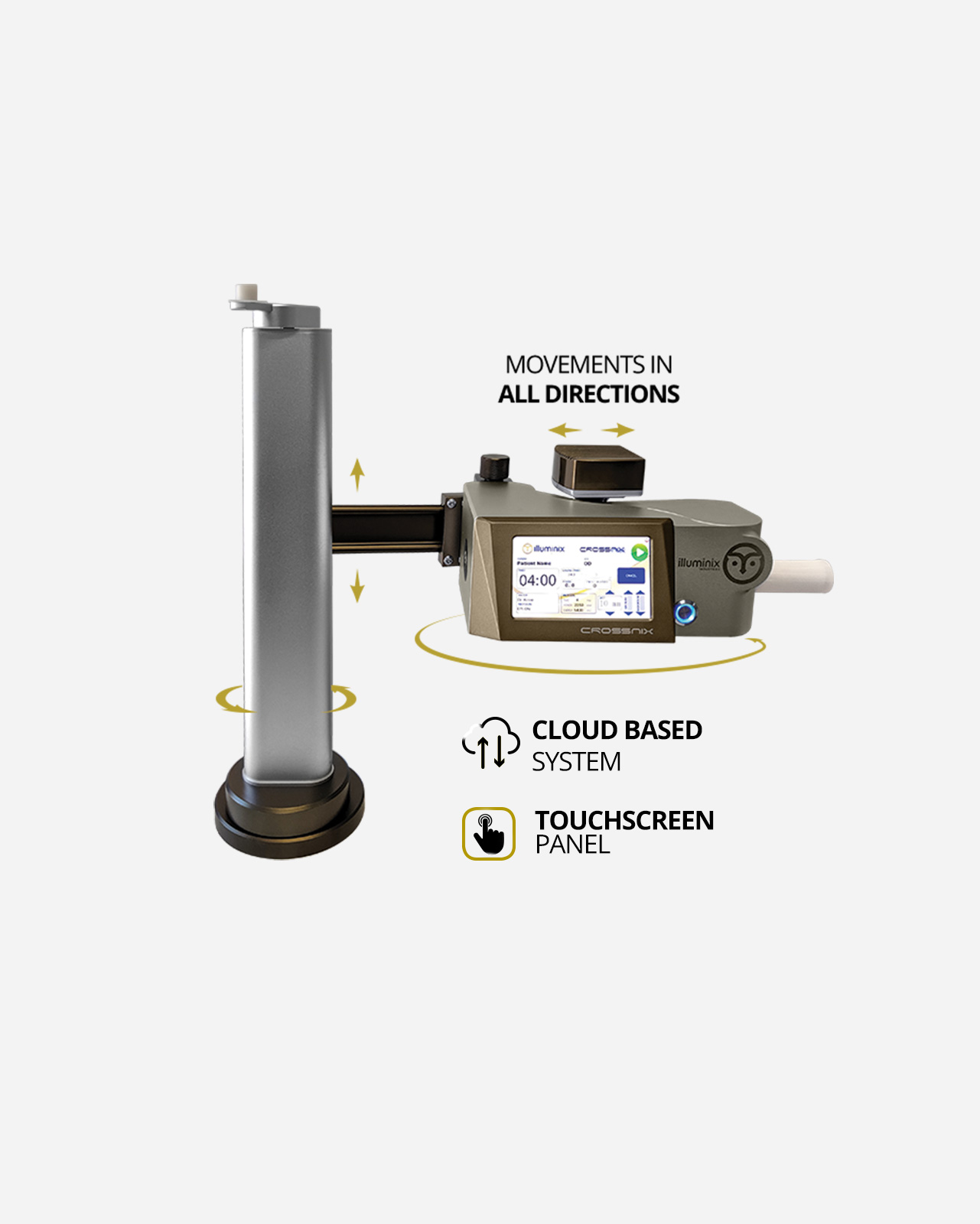

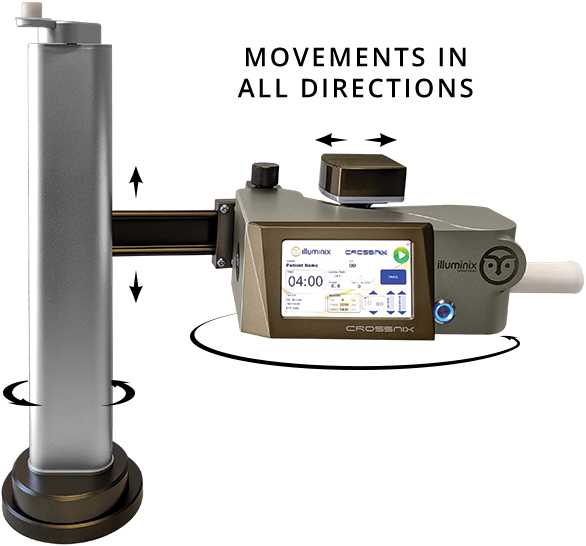

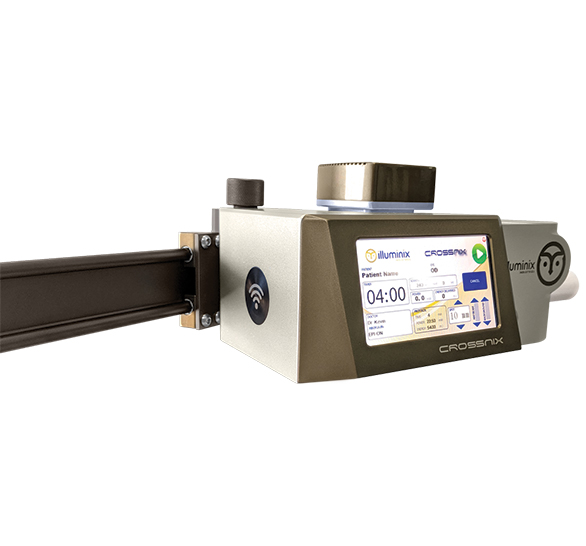

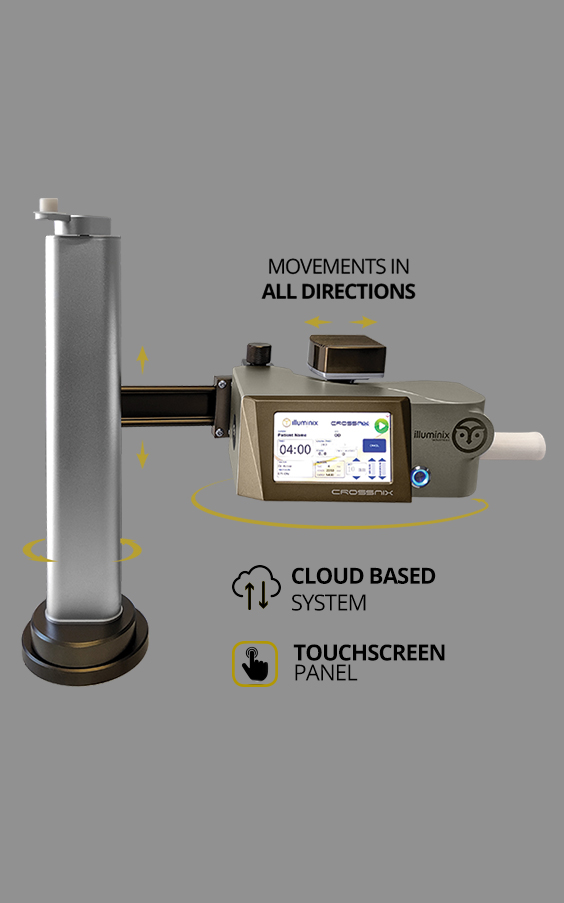

• Crosslinking Illuminix
  • Crosslinking Crossnix Illuminix

Cross Linking Crossnix

• PROTOCOLS.
• 30 minutes / Power: 3 mW/cm² / Total energy: 5400mJ.
• 15 minutes / Power: 6 mW/cm² / Total energy: 5400mJ.
• 10 minutes / Power: 9 mW/cm² / Total energy: 5400mJ.
• 5 minutes / Power: 18 mW/cm² / Total energy: 5400mJ.
• 4 minutes / Power: 22.5 mW/cm² / Total energy: 5400mJ.

• FEATURES.
• 365nm of UV light (UVA).
• Protocols of 4, 5, 10, 15 or 30 minutes with all 5400mJ of total energy.
• Soaking timer pauses from 0 to 240 seconds.
• Touchscreen 5'' Resistive.
• Fixation stand from table or floor.

• CLOUD BASED SYSTEM.
You can send automatically reports of crosslinking session to the cloud and print.

*NOT FOR SALE IN USA

REQUEST A QUOTE

REQUEST A QUOTE

  • Technical Specifications
    Technical Specifications:
    • UVA Wavelength: 365nm.
    • UVA intensity: 3 / 6 / 9 / 18 / 22.5 mW/cm².
    • Aiming bean Wavelenght: 635nm.
    • Aiming bean intensity: < 2Mw.
    • Background illumination: Cool White.
    • Working distance: 50mm ± 5mm.
    • Aperture spot: 4 / 6 / 8 /10mm automatic adjustment.
    • Soaking times pause: 0 - 240 seconds.
    • Connectivity: WiFi 802.11b/g/n.
    • Screen: Touchscreen 5''.
    • Camera: HDMI FullHD that can record sessions in a SD Card.
    • Electric power adapter input: 100/240 VAC / 50-60Hz.
    • Electric power adapter output: 12 VDC/2A.
