• Claricon Max Z Slit Lamp

Claricon Max Z Slit Lamp

• CRYSTALLINE OPTICS.
• SMOOTH & HIGH PRECISION MECHANICS DESIGN.
• LED ILLUMINATION.
• 5 MAGNIFICATION (6x, 10x, 16x 25x 40x).
• ZEISS STYLE.

REQUEST A QUOTE

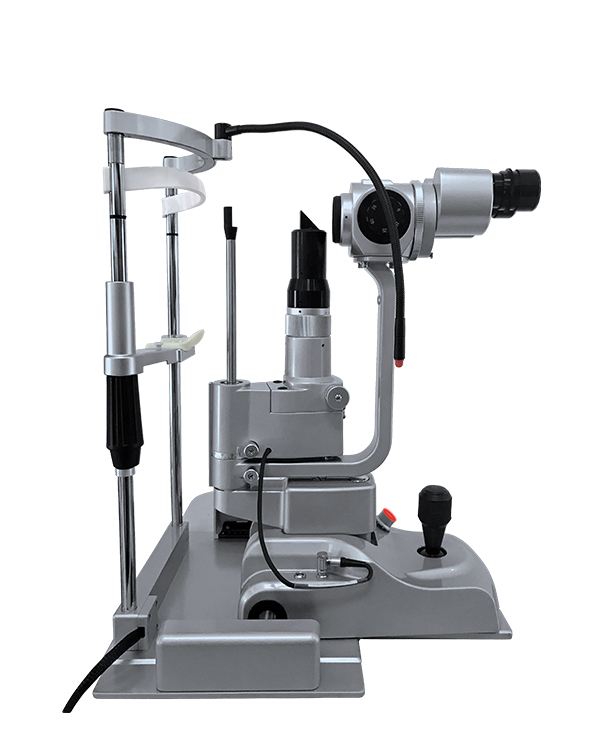

Claricon Max Z Slit Lamp

REQUEST A QUOTE


Crystalline optics were specifically designed for the Claricon Series Slit Lamp. Each lens is handcrafted and polished separately from the one before. This advantage gives doctors the ability to analyze in-depth details when it comes to visualization. No detail will be missed no matter what area of the eye is being examined.

  • “Great optics”
    James W
    Dallas, TX
  • “The optics is clear and very strong illumination”
    Willian Martin
    Miami, FL

  • Technical Specifications
    • Five Standard Magnification
    • Lower Illumination
    • Eyepiece: 12.5x
    • Pupilar distance: 54 mm~82 mm
    • Eyepiece adjustment: -7D ~ +7D
    • Slit width: 0mm~14mm continuous
    • Slit Height: 1mm~14mm continuous
    • Spot diameter: 14mm, 10mm, 5mm, 3mm, 1mm, 0.2mm
    • Slit angle: 0~180 Rotational
    • Filters: Heat, Gray, Green (Red-free), Blue (Cobalt)
    • Illumination: 12v, 50w (LED)
    • Fixation: Red LED 3.5V
    • Input Voltage: 100~240V
    • Frequency: 48~62 Hz

    REQUEST A QUOTE

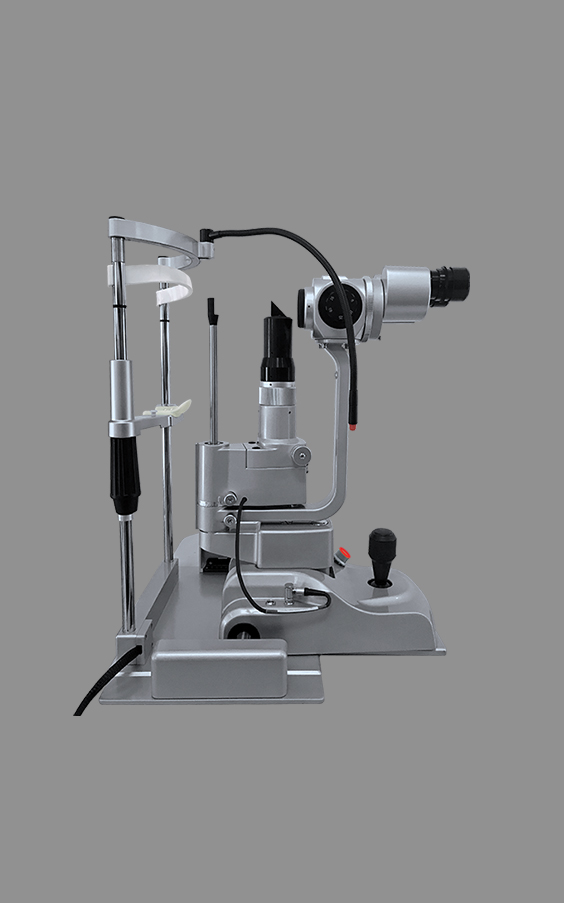

    Claricon Max Z Slit Lamp Illuminix

    REQUEST A QUOTE

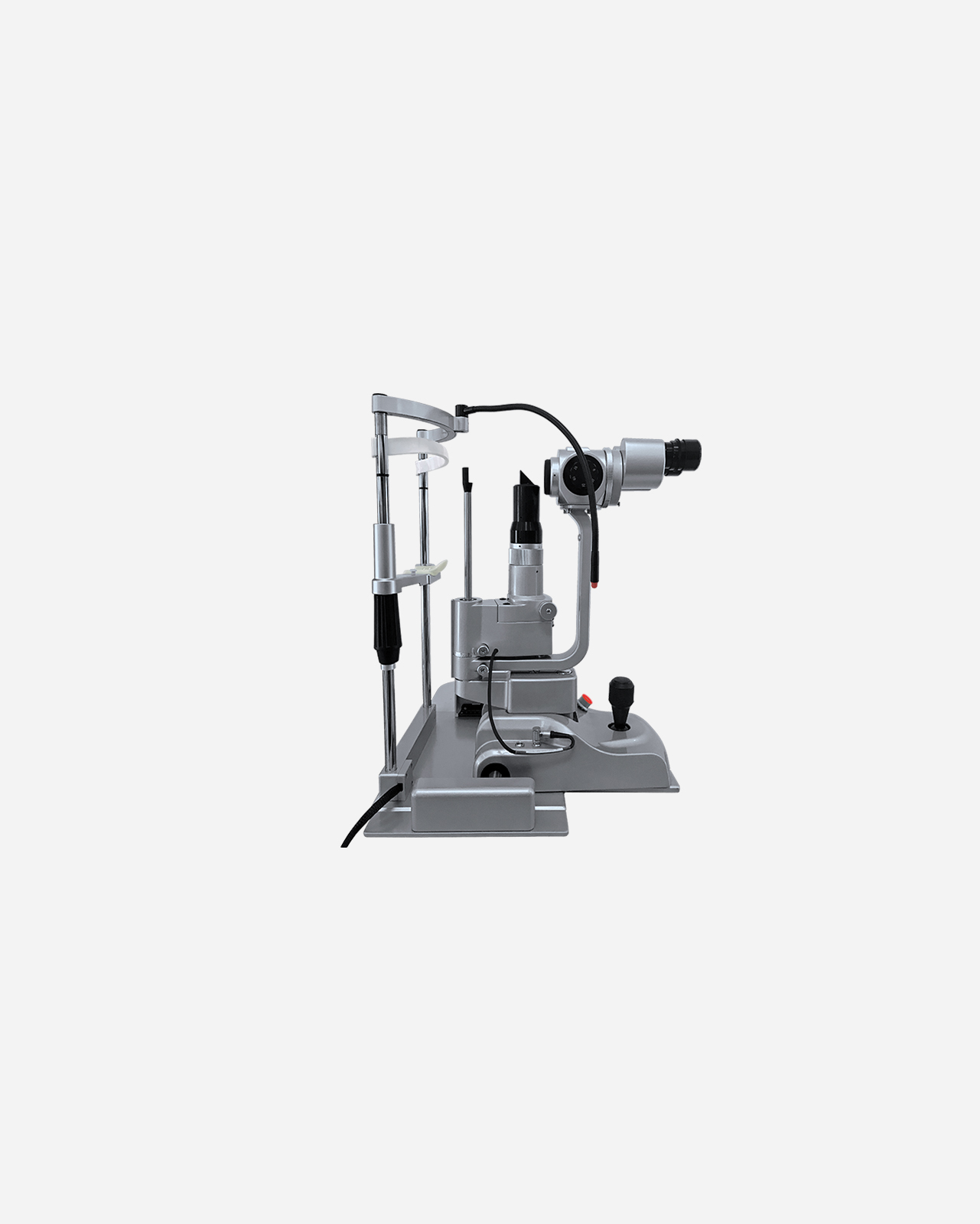

    Claricon Max Z Slit Lamp Design
