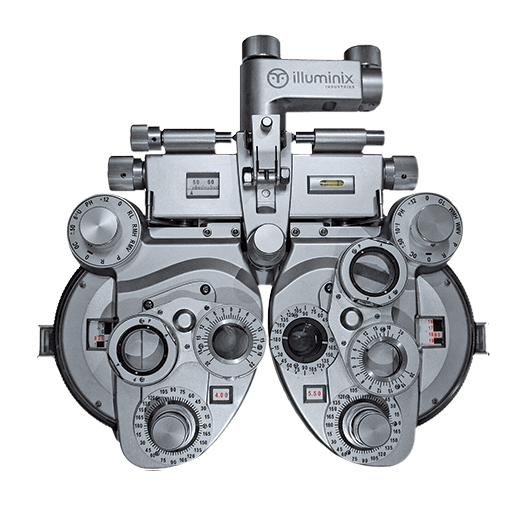

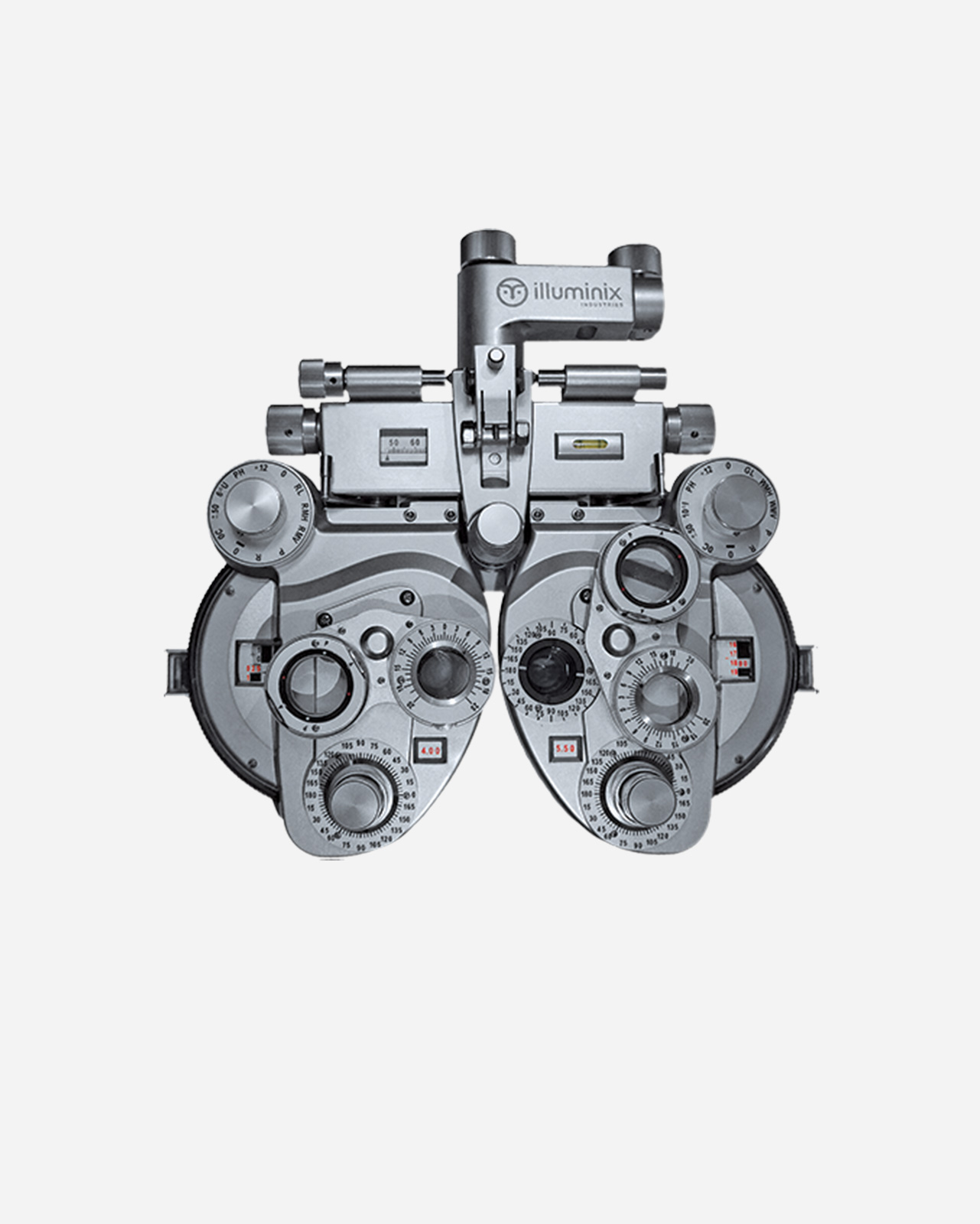

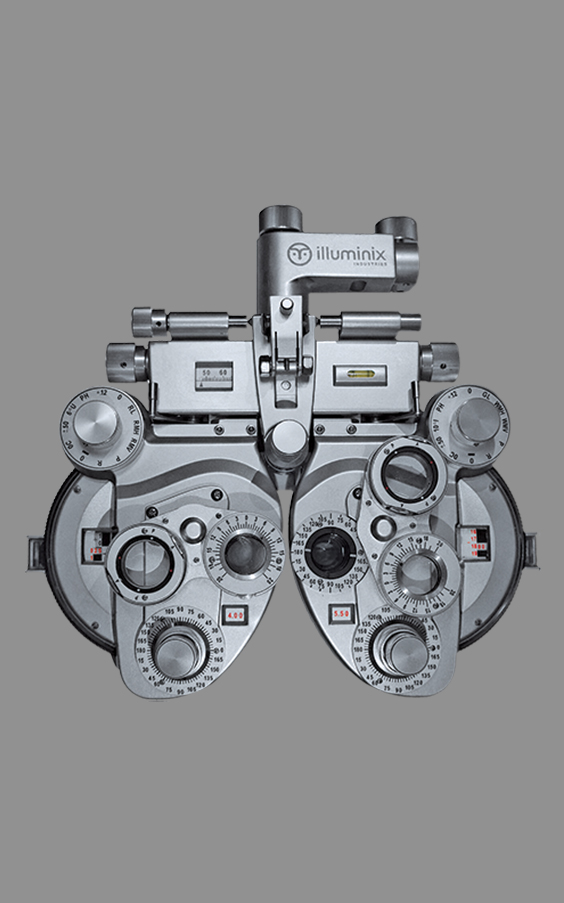

Essence™ Manual Phoropter
*NOT FOR SALE IN USA
• CRYSTAL-MADE LENSES.
The Essence Manual Phoropter offers a sharp, clear view of the patient’s ocular. High resistance crystals genetically make up the product, ensuring no scratches to the lenses. The phoropter is the perfect instrument to help you have a more dynamic practice every single day.
• HIGH RESISTANCE STEEL
The steel backing the Essence Manual Phoropter delivers extreme durability, ensuring large scale servicing.
• ELECTROSTATIC PAINTING
The carefully thought out painting of the instrument guarantees long lasting beauty of the product for years to come.
REQUEST A QUOTE
-
Technical SpecificationsTechnical Specifications:
- Synchronized Cross-Cylinders (+) or (-).
- Spherical Lens -19.00DS to +16.75DS in 0.25D steps (0.12D steps with auxiliary lens).
- Cylindrical Lens 0 to -6.00D in 0.25 D steps (0 to -8.00D and in 0.12D steps with auxiliary lens).
- Axis of Cylindrical Lens 5° steps.
- Cross Cylindrical Lens ±0.25D.
- Rotary Prism Range of measurement 0, -20, Step 1.
- Pupil Distance Range 1.97in / 50mm ~ 3in / 75mm, Step 0.04in / 1mm .
- Aggregated Adjustment 0,15in / 380mm.
- Adjustment of Forehead Rest 0.63in / 16mm.
-
Brochure
