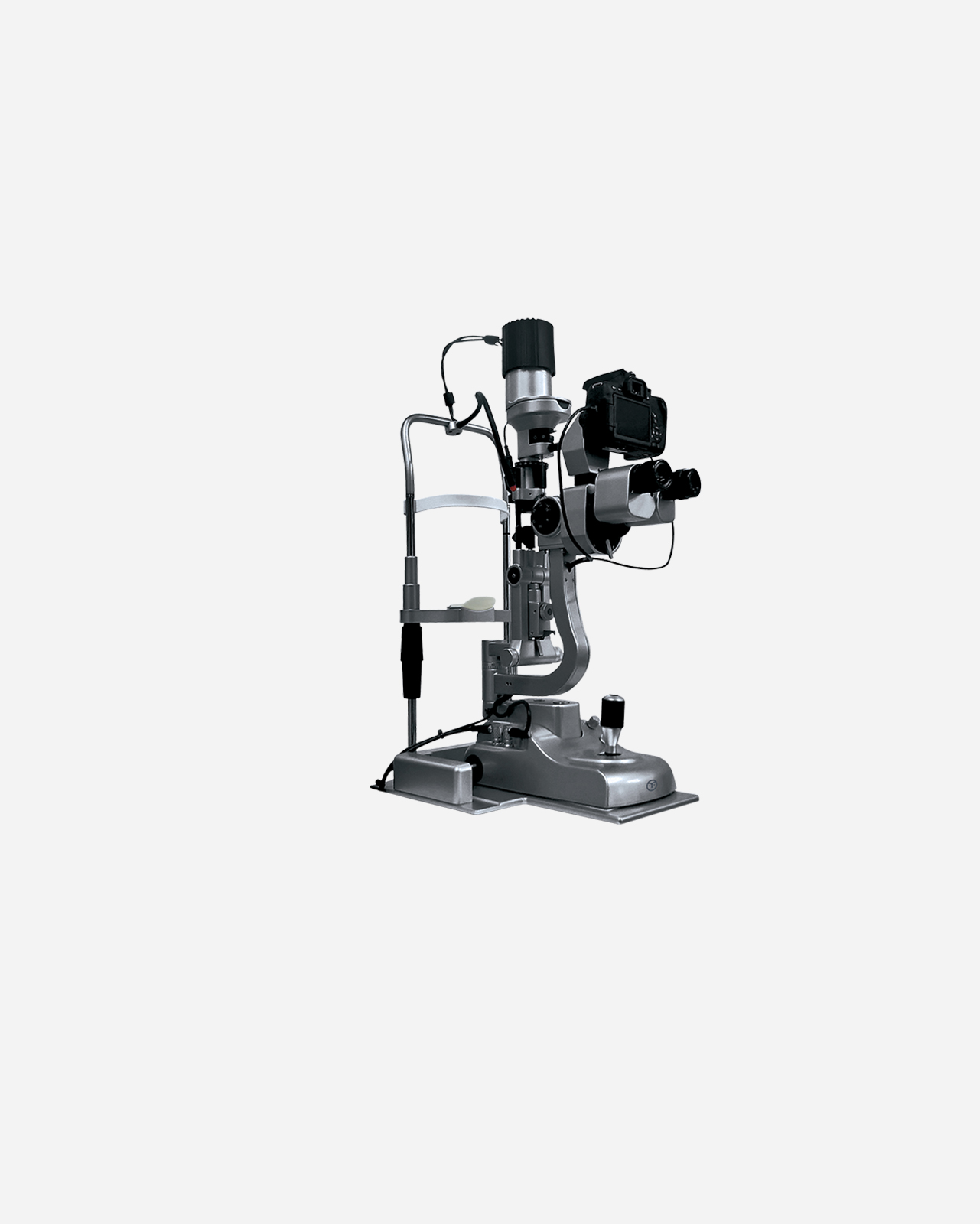

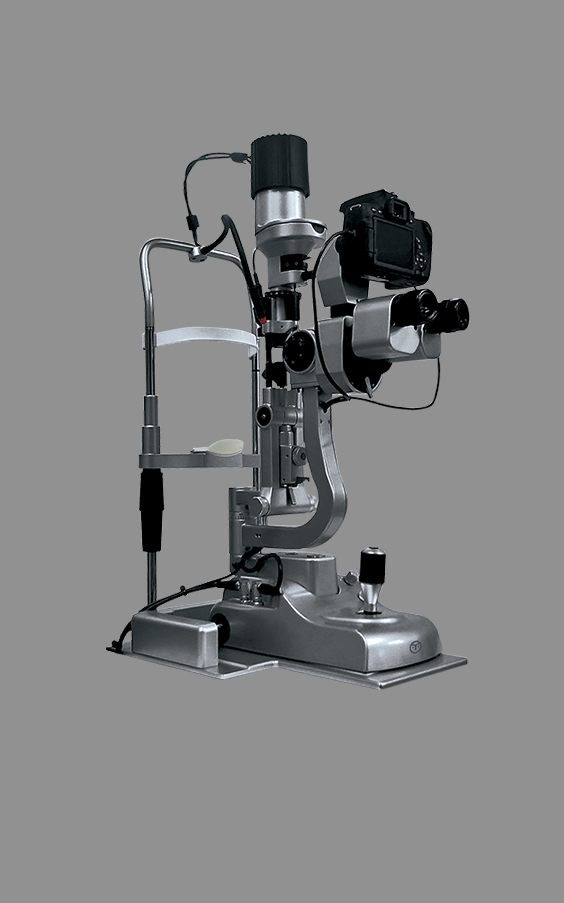

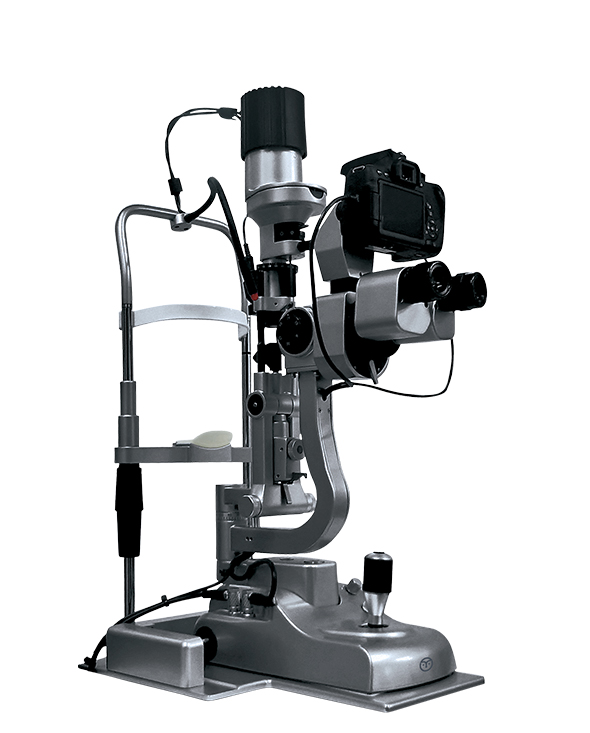

Claricon Max HD Slit Lamp

• CRYSTALLINE OPTICS.
• LED ILLUMINATION.
• HIGH RESOLUTION IMAGES AND VIDEO (18 MPX).
• DATABASE AND IMAGE EDITING SOFTWARE.

Quote Claricon Max HD

REQUEST A QUOTE

*Name:

*Phone:

*Email Address:

*City | Country:

Message:

By clicking the download button, you agree to the website’s terms and conditions

“Great optics”

James W
Dallas, TX
“The optics is clear and very strong illumination”

Willian Martin
Miami, FL

Technical Specifications
Five Standard Magnification

Eyepiece: 12.5x

Field: 37 / 23 / 14 / 8.7 / 5.7 (mm)

Eyepiece adjustment: -7D ~ +7D

Slit width: 0mm~14mm continuous

Slit Height: 1mm~14mm continuous

Spot diameter: 14mm, 10mm, 5mm, 3mm, 1mm, 0.2mm

Slit angle: 0~180 Rotational

Filters: Heat, Gray, Green (Red-free), Blue (Cobalt)

Illumination: 12v, 50w (LED)

Background illumination adjustable (LED)

Input Voltage: 100~240V

Image archival for patient education

Images in 18 megapixels

Software integrated

Minimum Computer Specification:
Processor i3

4 Gigabyte

HD 1 Terabyte

USB Port
